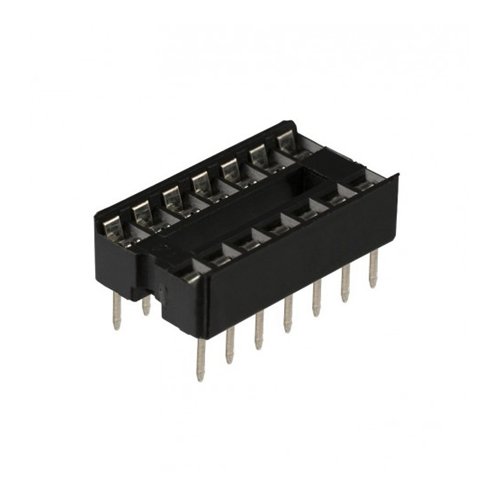

Name: 14 Pin IC Base
Brand: Chinese
SKU: 893651
Availability: InStock

Description

The 14 Pin IC Base is a reliable electronic component designed to mount and connect 14-pin integrated circuits (ICs) on a printed circuit board (PCB). Engineers, technicians, and electronics hobbyists use this IC socket to install IC chips safely while keeping them easy to replace.

Instead of soldering the IC directly onto the PCB, you can first solder the IC base to the board. Then you simply insert the IC into the socket. As a result, you can quickly remove or replace the IC whenever needed.

Additionally, the IC base protects sensitive IC chips from heat during soldering. Because of this advantage, many technicians use IC sockets in prototyping, circuit testing, and electronic device repair.

Key Features

Compatible with DIP-14 ICs – Supports standard 14-pin integrated circuits
Easy IC Replacement – Insert or remove ICs without desoldering
PCB Mountable Design – Solders directly onto printed circuit boards
Stable Electrical Contact – Ensures reliable signal transmission
Protects IC from Heat Damage – Install the IC after soldering the socket
Durable Construction – Suitable for long-term electronic use

Product Specifications

Specification	Details
Product Name	14 Pin IC Base
Type	IC Socket / IC Holder
Pin Count	14 Pins
Compatible Package	DIP-14
Mounting Type	Through-Hole PCB Mount
Material	Plastic Body with Metal Contacts
Application	Electronic Circuit Assembly

Applications

The 14 Pin IC Base supports many electronics applications. For example:

Electronics prototyping and circuit development
Microcontroller and IC testing circuits
Educational electronics laboratories
Repair and replacement of IC chips
Industrial PCB manufacturing

Furthermore, technicians can replace faulty IC chips quickly without damaging the PCB. Therefore, the IC base improves both maintenance efficiency and circuit reliability.

Package Includes

1 × 14 Pin IC Base (DIP-14 IC Socket)

✅ Ideal for: electronics students, engineers, DIY electronics projects, repair technicians, and PCB assembly.
