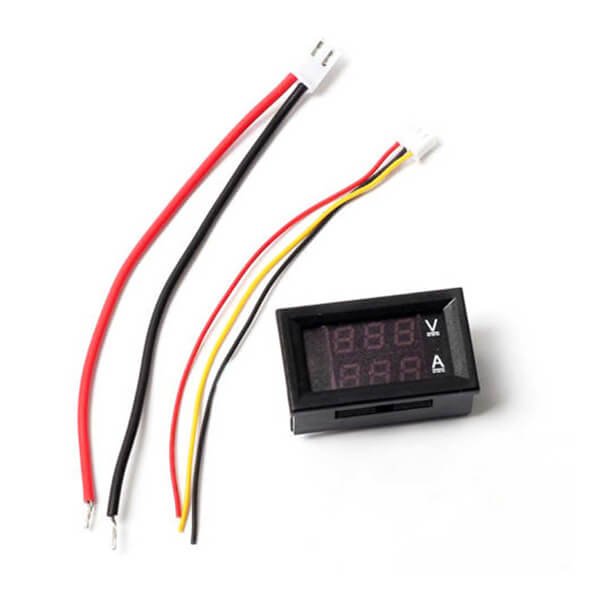

Name: Digital DC Voltmeter Ammeter Panel (0–100V, 0–10A)
Brand: Chinese
SKU: 55209
Availability: InStock

Description

The Digital DC Voltmeter Ammeter Panel is a compact and reliable monitoring solution for real-time measurement of DC voltage and current in power supplies, battery systems, electronic projects, and industrial control panels. Designed for accuracy and easy installation, this dual-display meter helps users quickly verify system performance and electrical load conditions.

Product Overview

This panel meter features a clear 0.28-inch dual-color LED display that shows voltage and current simultaneously. Moreover, it operates efficiently on a wide DC supply range and consumes very low power, making it ideal for continuous monitoring applications.

Key Features

Wide Measurement Range: Measures DC voltage from 0–100V and current from 0–10A
Dual Display: Voltage and current shown at the same time for quick diagnostics
High Accuracy: Delivers stable readings with a high accuracy class
Low Power Consumption: Meter self-current ≤ 20mA
Wide Operating Voltage: Meter self-power range DC 4–30V
Clear Visibility: 0.28″ LED digital tube with red (voltage) and blue (current) display
Compact Design: Panel size 48 × 29 × 22 mm, suitable for tight enclosures
Stable Performance: Works reliably from –10°C to +65°C

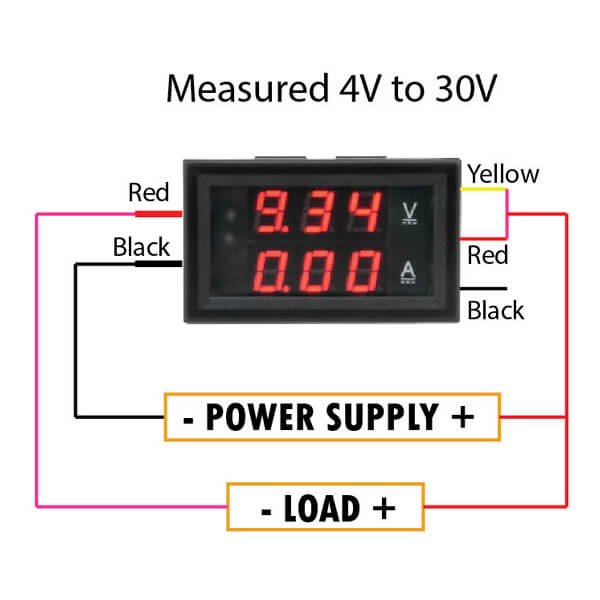

Easy Wiring: Clearly color-coded leads simplify installation and reduce errors

Technical Specifications

Display Type: Digital LED (dual color)
Power Supply: DC
Operating Temperature: –10°C to +65°C
Voltage Measuring Range: DC 0–100V
Current Measuring Range: DC 0–10A
Meter Working Voltage: DC 4–30V
Meter Working Current: ≤ 20mA
Display Size: 0.28 inch
Dimensions: 48 × 29 × 22 mm (L × W × T)

Applications

DC power supplies and adapters
Battery charging and discharging systems
Solar and renewable energy setups
DIY electronics and Arduino projects
Industrial control panels and test benches

Why Buy from Labtex Bangladesh

✔ Genuine, quality-checked electronic components
✔ Competitive pricing for retail and bulk orders
✔ Reliable local support and fast delivery across Bangladesh
✔ Ideal for laboratories, workshops, institutions, and industrial users

FAQs

Q1: Can this meter measure AC voltage or current?
No. This model is designed only for DC (Direct Current) measurements.

Q2: Does the meter require a separate power supply?
Yes. The meter itself needs DC 4–30V to operate, which can often be taken from the same circuit if compatible.

Q3: Is it suitable for continuous operation?
Yes. Thanks to low power consumption and stable performance, it supports long-term monitoring.

Q4: Is installation complicated?
Not at all. The color-coded wires make wiring straightforward, even for DIY users.
