Sanwa CD800a Digital Multi-meter

৳ 3,200.00

Original Multimeter Sanwa CD 800A

Description

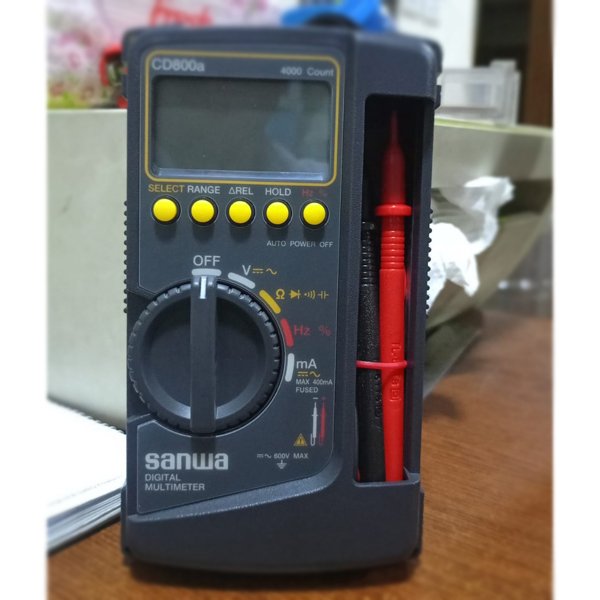

Sanwa CD800A Digital Multimeter

This auto-ranging multimeter will test AC and DC voltage and current as well as capacitance, resistance, frequency. It features a large, easily readable display for use in the field. It has all of the basic functions that you expect from a good digital multimeter including continuity check (with buzzer), diode test and data hold.

Features:

  • 3-3 / 4 digits 4000 count
  • 0.7% best accuracy
  • Capacitance measurement (Not suitable for measurement of condensers with large leakage current)
  • Frequency measurement (AC sine wave only)
  • Data hold / Range hold
  • Auto power off (30min.) (cancelable)
  • AC frequency bandwidth : 40〜400Hz

Specification:

Function Measuring Range Resolution Input Impedance
DC Volt 400m/4/40/400/600V 0.1mv DC:10M-100MΩAC:10M-11MΩ
AC Volt 4/40/400/600V 0.001v
DC Ampere 40m/400mA 0.01mA
AC Ampere 40m/400mA 0.01mA
Resistance 400/4K/40K/400K/4M/40MΩ 0.1Ω
Capacitance 50n/500n/5μ/50μ/100μF 0.01nF
Frequency 5HZ-100KHZ
Duty Cycle 20%-80%
Continuity Buzzer sounds at between 10Ω and120Ω. Open Voltage:Approx.0.4V
Diode Test Open voltage: Approx. 1.5V
Bandwidth 40-400HZ (sine)
Size/Weight H176*W104*D46mm/340g

It’s Original Sanwa CD800A Multimeter, Made in Japan
