Description

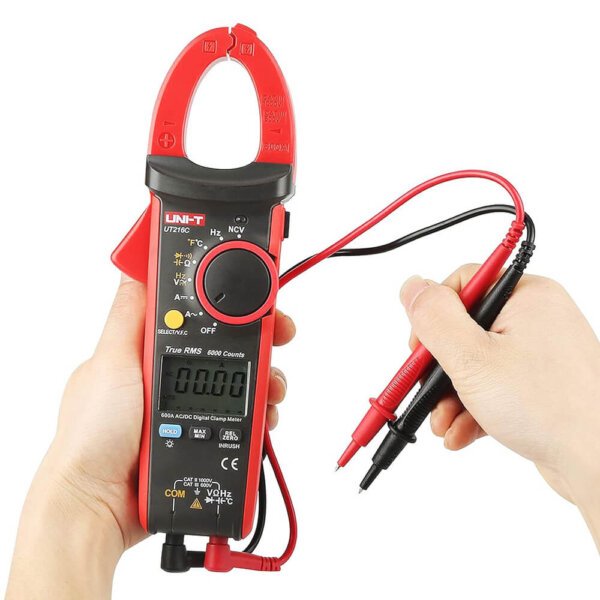

UNI-T UT216C 600A True RMS Digital Clamp Meter Multimeter Auto Range with Frequency Capacitance Temperature NCV Test Megohmmeter.
UT216 series true RMS digital clamp meter is a new-generation practical electrotechnical measurement meter that has the features of high reliability, high safety, automatic range, and handheld type has full-range overload protection and unique appearance design is more excellent in performance and is an ideal tool for detection, maintenance, and repair of various universities and colleges, smelting, communication, manufacturing, petroleum, electrical, power, and circuit equipment.
Features of Digital Clamp Meter:
- Display Count: 6000
- Auto Range: √
- Jaw Capacity: 30mm
- True RMS: √
- Diode Around 3.0V: √
- V.F.C.: √
- NCV: √
- Data Hold: √
- Zero Mode: √
- Relative Mode: √
- MAX/MIN: √
- Inrush Current: √
- LCD Backlight: √
- Analogue Bar Graph: 61
- Flashlight: √
- Auto Power Off Around 15 Minutes: √
- Continuity Buzzer: √
- Low Battery Indication: ≤3.6V
- Input Protection: √
- Input Impedance for DCV: ≥10M?
Specifications of UNI-T Digital Clamp Meter 600A UT216C:
- Brand: UNI-T
- Model: UT216C
- AC Current (A): 60A/600A ±(2.5% 5)
- DC Current (A): 60A/600A ±(2.5% 5)
- AC Voltage (V): 6V/60V/600V/750V ±(1.2% 5)
- DC Voltage (V): 600mV/6V/60V/600V/1000V ±(0.8% 1)
- Resistance (Ω): 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ ±(1% 2)
- Capacitance (F): 60nF/600nF/6μF/60μF/600μF/6mF/60mF ±(4.0% 5)
- Frequency (Hz): 10Hz-1MHz ±(0.1% 4)
- Temperature (°C): -40 °C ~1000°C ±(2.5% 3)
- Temperature (°F): -40 °F ~ 1832°F ±(2.5% 4)
General Characteristic:
- Power: 3 x AAA 1.5V (Not included)
- Product Net Weight: 231.7g
- Product Size: 220mm x 75mm x 40mm
- LCD Size: 38mm x 24 mm
- Product Color: Red and Grey
- Package Size: 23.5 x 9 x 6cm / 9 x 3.5 x 2.5in
- Package Weight: 442g / 1lb
Package Included:
- 1 x UNI-T UT216C Digital Clamp Meter
- 1 x k-type Thermocouple Probe
- 1 x Test Lead
- 1 x English Manual
