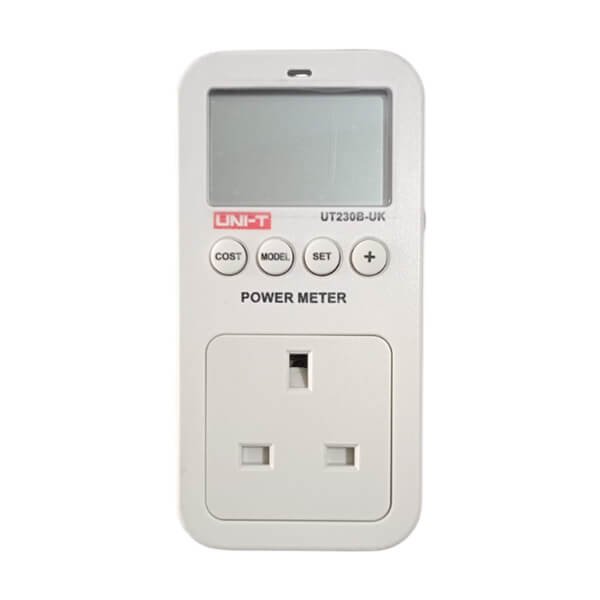

UNI-T UT230B-UK Power Meter | Plug Energy Monitor

The UNI-T UT230B-UK Power Meter is a high-precision energy monitoring device designed for home, office, and laboratory use. It measures voltage, current, power, energy consumption, frequency, and power factor, providing users with accurate data to track and reduce electricity usage.

Because it is built with advanced digital technology, the UT230B-UK offers both reliability and simplicity. You can simply plug it into any UK-type socket, connect your appliance, and instantly view live power readings on its large, easy-to-read LCD.

Key Features

• Real-Time Monitoring: Displays voltage (V), current (A), power (W), frequency (Hz), and energy (kWh).
• Cost Calculation Function: Helps calculate total electricity cost based on user-defined tariff rates.
• Data Memory Function: Stores accumulated energy data even after power disconnection.
• Backlit LCD Display: Large screen with high-contrast digits for convenient viewing in any environment.
• User-Friendly Operation: Equipped with buttons for MODE, SET, COST, and navigation.
• UK Plug Type: Compatible with Type G sockets, suitable for use in Bangladesh, the UK, and other Commonwealth regions.
• Compact & Durable Design: Lightweight construction ensures portability and long-term use.

Technical Specifications

• Model: UT230B-UK
• Display Type: LCD (backlit)
• Voltage Range: 230 V AC ±10%
• Current Range: 0 – 13 A
• Power Range: 0 – 2999 W
• Frequency Range: 45 – 65 Hz
• Energy Range: 0 – 9999 kWh
• Power Factor Range: 0.00 – 1.00
• Sampling Time: 1 second
• Operating Temperature: 0 °C – 40 °C
• Plug Type: UK 3-pin (Type G)
• Power Supply: 230 V AC, 50/60 Hz
• Brand: UNI-T
• Country of Origin: China

Applications

The UT230B-UK is ideal for:

• Home energy audits – Track daily and monthly power consumption.
• Laboratory use – Measure the energy usage of test setups or instruments.
• Industrial monitoring – Evaluate the efficiency of machines and tools.
• Office appliances – Identify high-consumption devices for energy optimization.

Safety and Usage Tips

Before connecting, ensure that the total load does not exceed 13 A or 2999 W. Avoid using the meter in damp or excessively hot environments. Always unplug the device before cleaning, and keep it away from water or conductive materials.

Buy UNI-T UT230B-UK Power Meter – a smart plug-in energy monitor that measures voltage, current, wattage, and electricity cost. Ideal for homes, labs, and industries. Available at Labtex Bangladesh.
