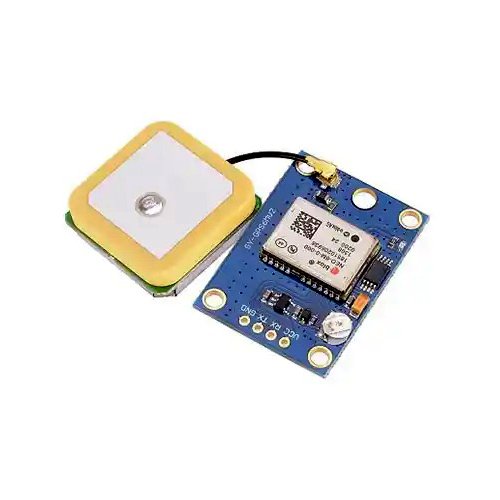

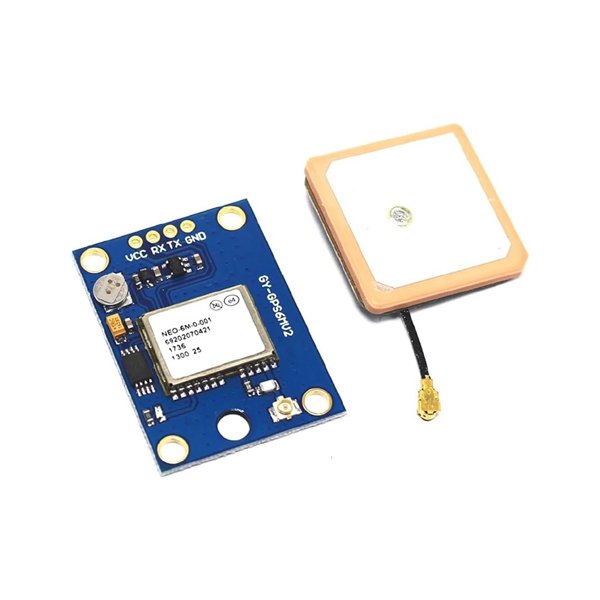

Name: Flight Control GPS Module NEO-6M V2 Ublox
Brand: Chinese
SKU: 65553
Availability: InStock

Description

The Flight Control GPS Module NEO-6M V2 Ublox is a high-performance GPS receiver board based on the popular Ublox NEO-6M chipset. Designed for accurate positioning, fast satellite acquisition, and stable performance, this module is widely used in Arduino projects, flight controllers, robotics, and IoT-based tracking systems.

Equipped with a large ceramic antenna and onboard EEPROM for configuration storage, the NEO6MV2 ensures reliable GPS signal reception even in challenging environments.

Available now at Labtex Bangladesh (Labtexbd.com) at competitive prices.

Key Features

✅ Based on Ublox NEO-6M GPS Chipset
✅ High Sensitivity GPS Receiver
✅ Large Ceramic Antenna for Strong Signal Reception
✅ Onboard EEPROM to Save Configuration Data
✅ Built-in Backup Battery for Faster Hot Start
✅ UART Serial Communication Interface
✅ LED Indicator for GPS Signal Status
✅ Compatible with Arduino, Raspberry Pi, APM 2.5, MWC, and Flight Controllers

Product Description

The GY-NEO-6MV2 GPS Module is designed to provide precise location data using satellite signals. It supports standard NMEA protocol output and communicates via UART (TX, RX), making integration simple with microcontrollers like Arduino and STM32.

This module features:

Cold start: ~27 seconds
Hot start: ~1 second
Position accuracy: Up to 2.5 meters
Update rate: 1Hz (configurable up to 5Hz)

The included large external antenna significantly improves signal reception, making it suitable for drone flight control systems, vehicle tracking devices, and outdoor navigation projects.

Technical Specifications

Parameter	Specification
Model	GY-NEO-6MV2
GPS Chip	Ublox NEO-6M
Operating Voltage	3V–5V DC
Communication	UART (TX, RX)
Default Baud Rate	9600 bps
Position Accuracy	~2.5m
Antenna Type	Ceramic External Antenna
EEPROM	24C32 for Configuration Storage
Backup Battery	Rechargeable Battery Included
Interface Pins	VCC, RX, TX, GND

Applications of the Flight Control GPS Module NEO-6M

Drone & UAV Flight Control Systems (APM 2.5 / MWC)
Vehicle Tracking Systems
IoT GPS Tracking Projects
Robotics Navigation
Asset Tracking Devices
Marine & Outdoor Positioning Systems
Arduino & Microcontroller Projects

Why Buy from Labtex Bangladesh?

At Labtexbd.com, we ensure:

✔ Genuine & Tested GPS Modules
✔ Best Price in Bangladesh
✔ Fast Nationwide Delivery
✔ Bulk & Corporate Supply Available
✔ Reliable Customer Support

Order Now from Labtexbd.com

Upgrade your project with accurate and reliable positioning using the GPS Module NEO6MV2 Ublox NEO-6M. Whether you’re building a drone, tracker, or robotics system, this GPS module delivers professional-level performance at an affordable price.

👉 Available now at Labtex Bangladesh – Place your order today!
